A bag lets go on Friday night and nobody looks at the gauge until Monday

Baghouse differential pressure (dP) is the pressure drop across the bags, and it tells you if the collector is doing its job. On most crushers it's a gauge on the housing that someone reads when they walk past.

Bags blind up, pulses go weak, or a bag bursts. It happens on night shift or over the weekend, and the first you hear is a dust complaint.

  • Too high: bags blinded or cleaning has stopped, so the fan works harder and pickup points lose suction.
  • Too low with the fan running: a burst or loose bag, or a leaking tubesheet seal.
  • Flat near zero: the sensing tubes have blocked and the gauge is lying.

Today versus with baghouse differential pressure alerts

TopicTodayWith monitoring
Spotting a burst bagDust at the stack, or a complaintA text within minutes of the fall
Bag changesOn the calendar or after a failureWhen the trend says so
Weekends and nightsThe gauge sits unreadThe sensor reads every few minutes

What we fit on the collector and at the office

  • Differential pressure sensor

    Reads the drop across the bags through two short tubes from the dirty and clean sides.

    0 to 10 in. w.g. range

  • Fan running input

    Reads a contact at the fan starter so a low dP only alerts when the fan is on.

    Reports on change

  • Gateway on the plant office

    Picks up every sensor by radio and sends the alerts out.

    Heartbeat check-in

  • Starlink or 4G backhaul

    Gets the text out from a pit or plant with patchy signal.

    Whichever suits your site

How baghouse differential pressure monitoring works on a crusher

Baghouse differential pressure sensed across the tubesheet Side section of a crusher-plant pulse-jet baghouse. Dirty air enters at the lower left and passes through the bags hanging from the tubesheet into the clean plenum above, where the pulse header sits. One bag is burst. Two tap tubes, one from the clean plenum and one from the dirty side, run to a battery differential pressure sensor beside the housing. The sensor sends a LoRa radio link to a gateway on the plant office. Below, a week-long trace of differential pressure in inches water gauge shows a normal sawtooth around 2 to 4, a slow ramp with no recovery that crosses the 6 and 8 inch bands, then a sudden cliff to near zero when the bag bursts. Baghouse section Clean plenum Tubesheet and bags Dirty inlet Pulse header Clean tap Dirty tap Battery dP sensor Plant office Gateway LoRa One week of dP, in. w.g. 6 in. w.g.: plan bag change 8 in. w.g.: bags blinded Normal sawtooth Ramp, no recovery Bag bursts dP falls Mon Thu Sun
Side section of a crusher plant baghouse with one burst bag. Two tap tubes, one from the clean plenum and one from the dirty side, feed a battery sensor that sends by LoRa radio to a gateway on the plant office. A week of dP shows the normal sawtooth, a slow ramp through the 6 and 8 in. w.g. bands, then a cliff when the bag bursts.
  1. 1

    Two tubes, one sensor

    Short tubes run from the dirty side and the clean plenum to a battery differential pressure sensor on the collector.

  2. 2

    Radio to the office

    The sensor sends a reading every 1 to 5 minutes by LoRaWAN radio to a gateway on the plant office.

  3. 3

    The trend, not just a number

    We watch the shape: the sawtooth, the low point climbing, or a sudden fall.

  4. 4

    A text to the right people

    The gateway sends out by 4G or Starlink and your nominated people get an SMS or email.

The same Friday night, with and without an alert

Without monitoring

  1. Fri 9:00 pmA bag bursts. The gauge needle drops. Nobody sees it.
  2. SatDust leaves the stack all weekend.
  3. Mon 6:30 amSomeone spots the dust or a neighbour rings.
  4. MonYou find out why, after the dust is already out.

With monitoring

  1. Fri 9:00 pmA bag bursts. dP falls with the fan running.
  2. Fri 9:10 pmText to maintenance and the boss.
  3. Sat 7:00 amCrusher stopped, bag found and changed.

What lands on your phone when a bag goes

Primary baghouse dP, last 12 hours

Dashboard view

dP now
1.9
Fan
Running
Low point
Dropping
1.9 2.7 3.5 Low alert, 30 percent under normal 3 pm5 pm7 pm9 pm10 pm in. w.g.
Example only. Your collector's alert levels come from its own baseline.

On a crushing and screening plant

Baghouses sit on crushers, screens and transfer points, outdoors and hard to reach. We walk each one and test the radio path, because steel housings block signal.

Pressure tapping into the housing is mechanical work. Your fabricator or a contractor we engage does it under your permits. We mount the sensor and tubing, set up the gateway and do the electrical work under QLD Electrical Contractor Licence 1513082.

Weak pulses are a common cause of a rising dP, so check compressed air leak monitoring. For the fan, see motor and fan vibration monitoring. For the rest of the plant, see conveyor bearing temperature monitoring.

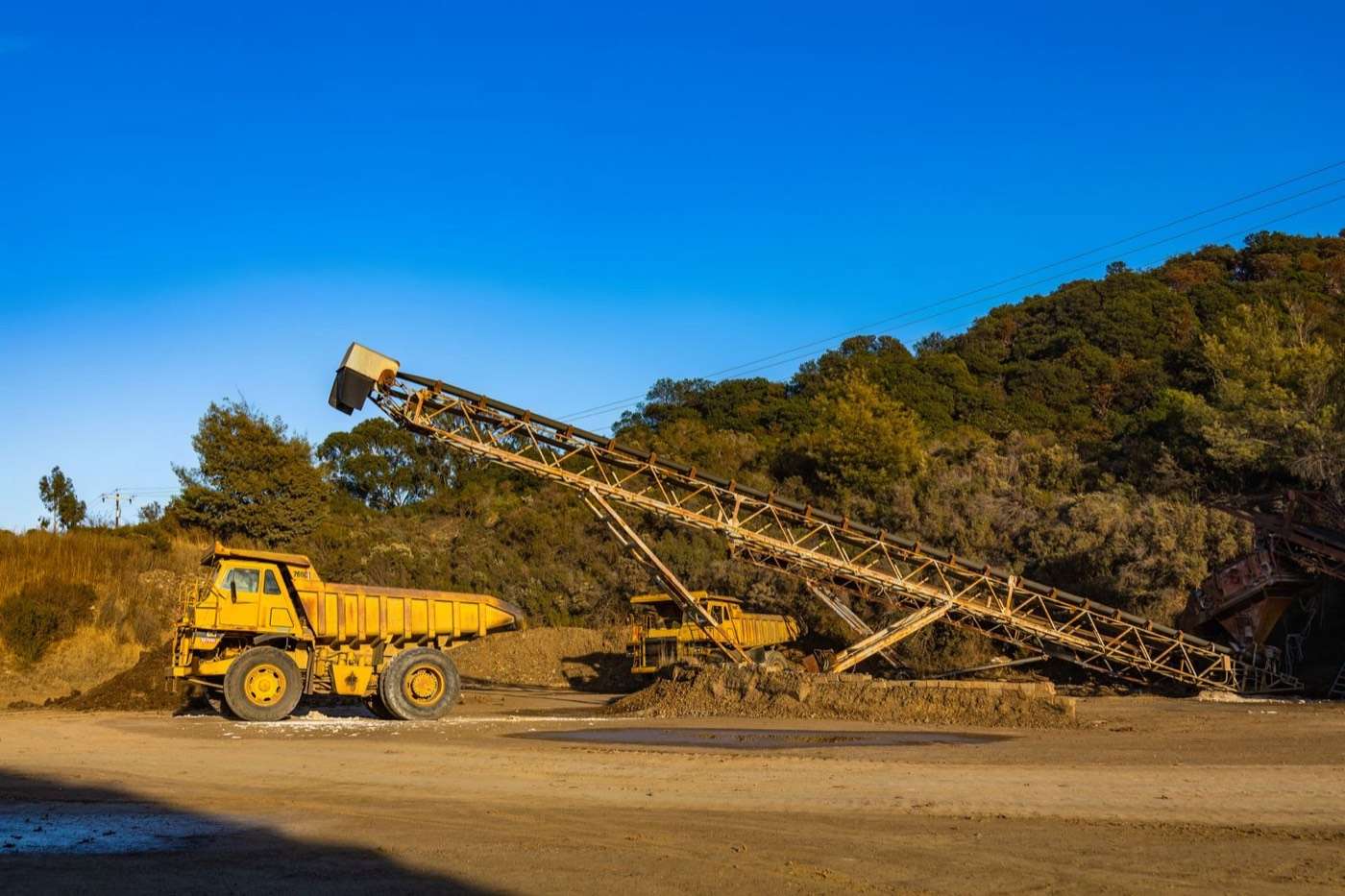

Dump truck beside a stacking conveyor at a quarry stockpile
Illustrative photo. Photo: Robert So on Pexels

What it costs

We fix the price after a short scoping call or a site visit. It depends on how many collectors, how far they are from the gateway, and how the alerts get out.

Get a quote for baghouse alerts

The fixed price covers

  • A differential pressure sensor on each collector
  • Gateway and 4G or Starlink backhaul
  • Installation and electrical work under QLD Electrical Contractor Licence 1513082
  • Alert set-up, who gets the text and the order they're called
  • Ongoing support

What this alert won't do

  • dP is a hint, not an emissions measurement. A few torn bags in a big house may barely move it.
  • It reads every few minutes. It won't show single pulses and it doesn't control anything.
  • Battery sensors are indicative. A licence record or audit needs calibrated instruments.
  • Your collector controller, bag inspections, stack testing and lock-out procedures all stay in place.

With you every step

How the five stages go on a crushing plant.

  1. 1

    Discovery

    We walk each collector with maintenance, find the tap points and gauges, and test the radio path to the office.

  2. 2

    Design

    You get a fixed-price scope: sensors, gateway, backhaul, who gets the texts, and the tapping work listed separately.

  3. 3

    Build and test

    We set up the sensors, gateway and alert rules, then test sensor to SMS before anything goes to site.

  4. 4

    Install and commission

    We mount the sensors and gateway and do the electrical work under Licence 1513082, alongside your gauge.

  5. 5

    Ongoing support

    After a few weeks we set alert levels from each collector's own trend, show maintenance the alerts and stay on for support.
